Type Year of construction Tubes Cabinet Remarks
PHILIPS B5X63A 1956 ECC85: FM Mixer
ECH81: AM Mixer, FM MF-Amplifier
EF89: MF-Amplifier
EF85: MF-Amplifier
EABC80: Detector and AF-amplifier
EL84: AF Outputstage
EL86: AF Outputstage
EM80: Tuning-indicator
EZ80: Rectifier

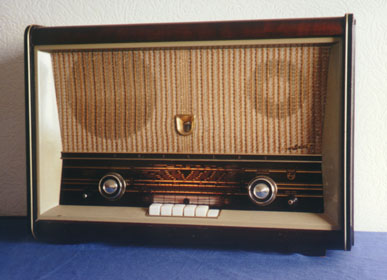

Wood Yet another example of a very characteristic Philips mid-fifties radio. It's outputstage is interesting because it features a series-balanced output stage without using an output transformer. This principle is used on various other Philips designs. See for an extensive description of the series- balanced outputstage the site of Gerard Tel
